RTPSink Class Reference

#include <RTPSink.hh>

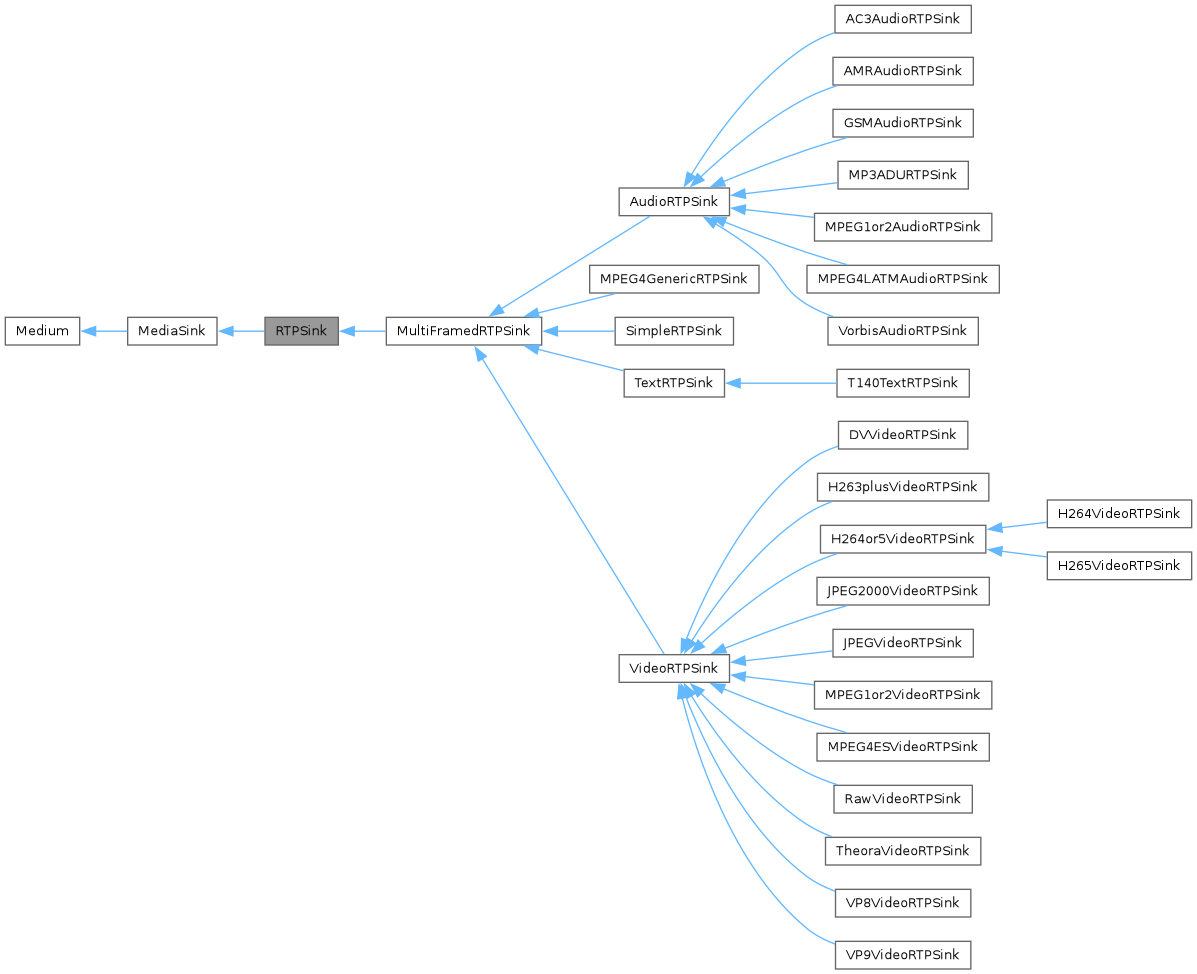

Inheritance diagram for RTPSink:

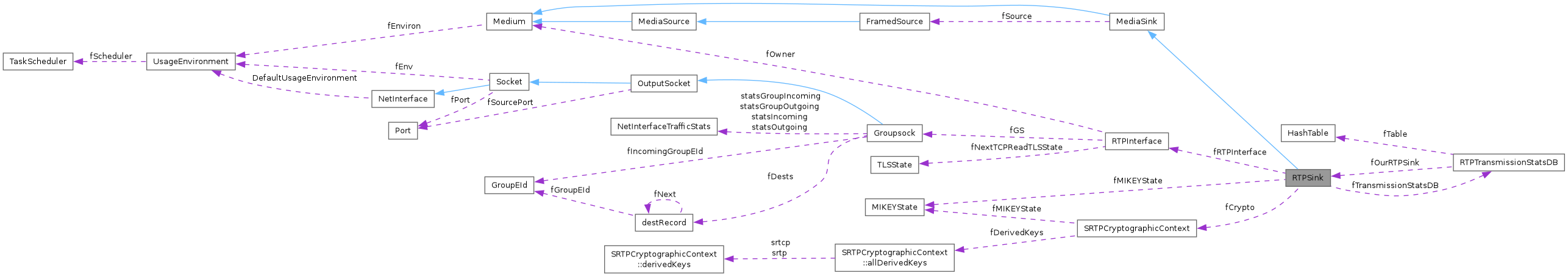

Collaboration diagram for RTPSink:

Public Types
typedef void	afterPlayingFunc(void *clientData)

Public Member Functions
Groupsock const &	groupsockBeingUsed () const
Groupsock &	groupsockBeingUsed ()
unsigned char	rtpPayloadType () const
unsigned	rtpTimestampFrequency () const
void	setRTPTimestampFrequency (unsigned freq)
char const *	rtpPayloadFormatName () const
unsigned	numChannels () const
void	setupForSRTP (Boolean useEncryption, u_int32_t roc)
u_int8_t *	setupForSRTP (Boolean useEncryption, u_int32_t roc, unsigned &resultMIKEYStateMessageSize)
void	setupForSRTP (u_int8_t const *MIKEYStateMessage, unsigned MIKEYStateMessageSize, u_int32_t roc)
virtual char const *	sdpMediaType () const
virtual char *	rtpmapLine () const
virtual char *	keyMgmtLine ()
virtual char const *	auxSDPLine ()
u_int16_t	currentSeqNo () const
u_int32_t	presetNextTimestamp ()
RTPTransmissionStatsDB &	transmissionStatsDB () const
Boolean	nextTimestampHasBeenPreset () const
Boolean &	enableRTCPReports ()
void	getTotalBitrate (unsigned &outNumBytes, double &outElapsedTime)
struct timeval const &	creationTime () const
struct timeval const &	initialPresentationTime () const
struct timeval const &	mostRecentPresentationTime () const
void	resetPresentationTimes ()
void	setStreamSocket (int sockNum, unsigned char streamChannelId, TLSState *tlsState)
void	addStreamSocket (int sockNum, unsigned char streamChannelId, TLSState *tlsState)
void	removeStreamSocket (int sockNum, unsigned char streamChannelId)
unsigned &	estimatedBitrate ()
u_int32_t	SSRC () const
SRTPCryptographicContext *	getCrypto () const
u_int32_t	srtpROC () const
Boolean	startPlaying (MediaSource &source, afterPlayingFunc *afterFunc, void *afterClientData)
virtual void	stopPlaying ()
FramedSource *	source () const
UsageEnvironment &	envir () const
char const *	name () const
virtual Boolean	isSource () const
virtual Boolean	isRTCPInstance () const
virtual Boolean	isRTSPClient () const
virtual Boolean	isRTSPServer () const
virtual Boolean	isMediaSession () const
virtual Boolean	isServerMediaSession () const

Static Public Member Functions
static Boolean	lookupByName (UsageEnvironment &env, char const *sinkName, RTPSink *&resultSink)
static Boolean	lookupByName (UsageEnvironment &env, char const *sinkName, MediaSink *&resultSink)
static Boolean	lookupByName (UsageEnvironment &env, char const *mediumName, Medium *&resultMedium)
static void	close (UsageEnvironment &env, char const *mediumName)
static void	close (Medium *medium)

Protected Member Functions
	RTPSink (UsageEnvironment &env, Groupsock *rtpGS, unsigned char rtpPayloadType, u_int32_t rtpTimestampFrequency, char const *rtpPayloadFormatName, unsigned numChannels)
virtual	~RTPSink ()
u_int32_t	convertToRTPTimestamp (struct timeval tv)
unsigned	packetCount () const
unsigned	octetCount () const
virtual Boolean	sourceIsCompatibleWithUs (MediaSource &source)
virtual Boolean	continuePlaying ()=0
void	onSourceClosure ()
TaskToken &	nextTask ()

Static Protected Member Functions
static void	onSourceClosure (void *clientData)

Protected Attributes
RTPInterface	fRTPInterface
unsigned char	fRTPPayloadType
unsigned	fPacketCount
unsigned	fOctetCount
unsigned	fTotalOctetCount
struct timeval fTotalOctetCountStartTime fInitialPresentationTime	fMostRecentPresentationTime
u_int32_t	fCurrentTimestamp
u_int16_t	fSeqNo
MIKEYState *	fMIKEYState
SRTPCryptographicContext *	fCrypto
FramedSource *	fSource

Private Member Functions
virtual Boolean	isRTPSink () const
virtual Boolean	isSink () const

Private Attributes
u_int32_t	fSSRC
u_int32_t	fTimestampBase
unsigned	fTimestampFrequency
Boolean	fNextTimestampHasBeenPreset
Boolean	fEnableRTCPReports
char const *	fRTPPayloadFormatName
unsigned	fNumChannels
struct timeval	fCreationTime
unsigned	fEstimatedBitrate
RTPTransmissionStatsDB *	fTransmissionStatsDB
afterPlayingFunc *	fAfterFunc
void *	fAfterClientData
UsageEnvironment &	fEnviron
char	fMediumName [mediumNameMaxLen]
TaskToken	fNextTask

Friends
class	RTCPInstance
class	RTPTransmissionStats

Detailed Description

Definition at line 36 of file RTPSink.hh.

Member Typedef Documentation

afterPlayingFunc

typedef void MediaSink::afterPlayingFunc(void *clientData)

inherited

Definition at line 33 of file MediaSink.hh.

Constructor & Destructor Documentation

RTPSink()

RTPSink::RTPSink ( UsageEnvironment & env, Groupsock * rtpGS, unsigned char rtpPayloadType, u_int32_t rtpTimestampFrequency, char const * rtpPayloadFormatName, unsigned numChannels )

protected

References numChannels(), rtpPayloadFormatName(), rtpPayloadType(), and rtpTimestampFrequency().

Referenced by lookupByName().

~RTPSink()

virtual RTPSink::~RTPSink ( )

protectedvirtual

Member Function Documentation

addStreamSocket()

void RTPSink::addStreamSocket ( int sockNum, unsigned char streamChannelId, TLSState * tlsState )

inline

Definition at line 92 of file RTPSink.hh.

                                                                                       {
    fRTPInterface.addStreamSocket(sockNum, streamChannelId, tlsState);
  }

References RTPInterface::addStreamSocket(), and fRTPInterface.

auxSDPLine()

virtual char const * RTPSink::auxSDPLine ( )

virtual

Reimplemented in AMRAudioRTPSink, DVVideoRTPSink, H264VideoRTPSink, H265VideoRTPSink, MPEG4ESVideoRTPSink, MPEG4GenericRTPSink, MPEG4LATMAudioRTPSink, RawVideoRTPSink, TheoraVideoRTPSink, and VorbisAudioRTPSink.

close() [1/2]

void Medium::close ( Medium * medium )

staticinherited

References Medium().

close() [2/2]

void Medium::close ( UsageEnvironment & env, char const * mediumName )

staticinherited

continuePlaying()

virtual Boolean MediaSink::continuePlaying ( )

protectedpure virtualinherited

Implemented in BasicUDPSink, FileSink, H264or5VideoRTPSink, HLSSegmenter, MultiFramedRTPSink, OggFileSink, and T140TextRTPSink.

convertToRTPTimestamp()

u_int32_t RTPSink::convertToRTPTimestamp ( struct timeval tv )

protected

creationTime()

struct timeval const & RTPSink::creationTime ( ) const

inline

Definition at line 83 of file RTPSink.hh.

{ return fCreationTime; }

References fCreationTime.

currentSeqNo()

u_int16_t RTPSink::currentSeqNo ( ) const

inline

Definition at line 67 of file RTPSink.hh.

{ return fSeqNo; }

References fSeqNo.

enableRTCPReports()

Boolean & RTPSink::enableRTCPReports ( )

inline

Definition at line 77 of file RTPSink.hh.

{ return fEnableRTCPReports; }

References fEnableRTCPReports.

envir()

UsageEnvironment & Medium::envir ( ) const

inlineinherited

Definition at line 59 of file Media.hh.

{return fEnviron;}

References fEnviron.

Referenced by MediaSubsession::env(), GenericMediaServer::ClientConnection::envir(), GenericMediaServer::ClientSession::envir(), and RTPInterface::envir().

estimatedBitrate()

unsigned & RTPSink::estimatedBitrate ( )

inline

Definition at line 98 of file RTPSink.hh.

{ return fEstimatedBitrate; } // kbps; usually 0 (i.e., unset)

References fEstimatedBitrate.

getCrypto()

SRTPCryptographicContext * RTPSink::getCrypto ( ) const

inline

Definition at line 103 of file RTPSink.hh.

{ return fCrypto; }

References fCrypto.

getTotalBitrate()

void RTPSink::getTotalBitrate	(	unsigned &	outNumBytes,
		double &	outElapsedTime )

groupsockBeingUsed() [1/2]

Groupsock & RTPSink::groupsockBeingUsed ( )

inline

Definition at line 43 of file RTPSink.hh.

{ return *(fRTPInterface.gs()); }

References fRTPInterface, and RTPInterface::gs().

groupsockBeingUsed() [2/2]

Groupsock const & RTPSink::groupsockBeingUsed ( ) const

inline

Definition at line 42 of file RTPSink.hh.

{ return *(fRTPInterface.gs()); }

References fRTPInterface, and RTPInterface::gs().

initialPresentationTime()

struct timeval const & RTPSink::initialPresentationTime ( ) const

inline

Definition at line 84 of file RTPSink.hh.

{ return fInitialPresentationTime; }

isMediaSession()

virtual Boolean Medium::isMediaSession ( ) const

virtualinherited

Reimplemented in MediaSession.

isRTCPInstance()

virtual Boolean Medium::isRTCPInstance ( ) const

virtualinherited

Reimplemented in RTCPInstance.

isRTPSink()

virtual Boolean RTPSink::isRTPSink ( ) const

privatevirtual

Reimplemented from MediaSink.

isRTSPClient()

virtual Boolean Medium::isRTSPClient ( ) const

virtualinherited

Reimplemented in RTSPClient.

isRTSPServer()

virtual Boolean Medium::isRTSPServer ( ) const

virtualinherited

Reimplemented in RTSPServer.

isServerMediaSession()

virtual Boolean Medium::isServerMediaSession ( ) const

virtualinherited

Reimplemented in ServerMediaSession.

isSink()

virtual Boolean MediaSink::isSink ( ) const

privatevirtualinherited

Reimplemented from Medium.

isSource()

virtual Boolean Medium::isSource ( ) const

virtualinherited

Reimplemented in MediaSource.

keyMgmtLine()

virtual char * RTPSink::keyMgmtLine ( )

virtual

lookupByName() [1/3]

Boolean MediaSink::lookupByName ( UsageEnvironment & env, char const * sinkName, MediaSink *& resultSink )

staticinherited

References MediaSink().

lookupByName() [2/3]

Boolean Medium::lookupByName ( UsageEnvironment & env, char const * mediumName, Medium *& resultMedium )

staticinherited

References Medium().

lookupByName() [3/3]

Boolean RTPSink::lookupByName ( UsageEnvironment & env, char const * sinkName, RTPSink *& resultSink )

static

References RTPSink().

mostRecentPresentationTime()

struct timeval const & RTPSink::mostRecentPresentationTime ( ) const

inline

Definition at line 85 of file RTPSink.hh.

{ return fMostRecentPresentationTime; }

References fMostRecentPresentationTime.

name()

char const * Medium::name ( ) const

inlineinherited

Definition at line 61 of file Media.hh.

{return fMediumName;}

References fMediumName.

Referenced by QuickTimeFileSink::_atom(), RTSPServer::lookupByName(), RTCPInstance::sendAppPacket(), and OnDemandServerMediaSubsession::sendRTCPAppPacket().

nextTask()

TaskToken & Medium::nextTask ( )

inlineprotectedinherited

Definition at line 77 of file Media.hh.

                        {
        return fNextTask;
  }

References fNextTask.

nextTimestampHasBeenPreset()

Boolean RTPSink::nextTimestampHasBeenPreset ( ) const

inline

Definition at line 76 of file RTPSink.hh.

{ return fNextTimestampHasBeenPreset; }

References fNextTimestampHasBeenPreset.

numChannels()

unsigned RTPSink::numChannels ( ) const

inline

Definition at line 50 of file RTPSink.hh.

{ return fNumChannels; }

References fNumChannels.

Referenced by AudioRTPSink::AudioRTPSink(), MPEG4GenericRTPSink::createNew(), MPEG4LATMAudioRTPSink::createNew(), SimpleRTPSink::createNew(), VorbisAudioRTPSink::createNew(), VorbisAudioRTPSink::createNew(), MPEG4GenericRTPSink::MPEG4GenericRTPSink(), MPEG4LATMAudioRTPSink::MPEG4LATMAudioRTPSink(), MultiFramedRTPSink::MultiFramedRTPSink(), RTPSink(), SimpleRTPSink::SimpleRTPSink(), and VorbisAudioRTPSink::VorbisAudioRTPSink().

octetCount()

unsigned RTPSink::octetCount ( ) const

inlineprotected

Definition at line 121 of file RTPSink.hh.

{return fOctetCount;}

References fOctetCount.

onSourceClosure() [1/2]

void MediaSink::onSourceClosure ( )

protectedinherited

onSourceClosure() [2/2]

void MediaSink::onSourceClosure ( void * clientData )

staticprotectedinherited

packetCount()

unsigned RTPSink::packetCount ( ) const

inlineprotected

Definition at line 120 of file RTPSink.hh.

{return fPacketCount;}

References fPacketCount.

presetNextTimestamp()

u_int32_t RTPSink::presetNextTimestamp

(

)

removeStreamSocket()

void RTPSink::removeStreamSocket ( int sockNum, unsigned char streamChannelId )

inline

Definition at line 95 of file RTPSink.hh.

                                                                      {
    fRTPInterface.removeStreamSocket(sockNum, streamChannelId);
  }

References fRTPInterface, and RTPInterface::removeStreamSocket().

resetPresentationTimes()

void RTPSink::resetPresentationTimes

(

)

rtpmapLine()

virtual char * RTPSink::rtpmapLine ( ) const

virtual

rtpPayloadFormatName()

char const * RTPSink::rtpPayloadFormatName ( ) const

inline

Definition at line 48 of file RTPSink.hh.

{ return fRTPPayloadFormatName; }

References fRTPPayloadFormatName.

Referenced by AudioRTPSink::AudioRTPSink(), SimpleRTPSink::createNew(), MultiFramedRTPSink::MultiFramedRTPSink(), RTPSink(), SimpleRTPSink::SimpleRTPSink(), TextRTPSink::TextRTPSink(), and VideoRTPSink::VideoRTPSink().

rtpPayloadType()

unsigned char RTPSink::rtpPayloadType ( ) const

inline

Definition at line 45 of file RTPSink.hh.

{ return fRTPPayloadType; }

References fRTPPayloadType.

Referenced by AudioRTPSink::AudioRTPSink(), MultiFramedRTPSink::MultiFramedRTPSink(), RTPSink(), TextRTPSink::TextRTPSink(), and VideoRTPSink::VideoRTPSink().

rtpTimestampFrequency()

unsigned RTPSink::rtpTimestampFrequency ( ) const

inline

Definition at line 46 of file RTPSink.hh.

{ return fTimestampFrequency; }

References fTimestampFrequency.

Referenced by AC3AudioRTPSink::AC3AudioRTPSink(), AudioRTPSink::AudioRTPSink(), AC3AudioRTPSink::createNew(), H263plusVideoRTPSink::createNew(), MPEG4ESVideoRTPSink::createNew(), MPEG4ESVideoRTPSink::createNew(), MPEG4GenericRTPSink::createNew(), MPEG4LATMAudioRTPSink::createNew(), SimpleRTPSink::createNew(), VorbisAudioRTPSink::createNew(), VorbisAudioRTPSink::createNew(), H263plusVideoRTPSink::H263plusVideoRTPSink(), MPEG4ESVideoRTPSink::MPEG4ESVideoRTPSink(), MPEG4GenericRTPSink::MPEG4GenericRTPSink(), MPEG4LATMAudioRTPSink::MPEG4LATMAudioRTPSink(), MultiFramedRTPSink::MultiFramedRTPSink(), RTPSink(), SimpleRTPSink::SimpleRTPSink(), TextRTPSink::TextRTPSink(), VideoRTPSink::VideoRTPSink(), and VorbisAudioRTPSink::VorbisAudioRTPSink().

sdpMediaType()

virtual char const * RTPSink::sdpMediaType ( ) const

virtual

Reimplemented in AudioRTPSink, MPEG4GenericRTPSink, SimpleRTPSink, TextRTPSink, and VideoRTPSink.

setRTPTimestampFrequency()

void RTPSink::setRTPTimestampFrequency ( unsigned freq )

inline

Definition at line 47 of file RTPSink.hh.

{ fTimestampFrequency = freq; }

References fTimestampFrequency.

setStreamSocket()

void RTPSink::setStreamSocket ( int sockNum, unsigned char streamChannelId, TLSState * tlsState )

inline

Definition at line 89 of file RTPSink.hh.

                                                                                       {
    fRTPInterface.setStreamSocket(sockNum, streamChannelId, tlsState);
  }

References fRTPInterface, and RTPInterface::setStreamSocket().

setupForSRTP() [1/3]

void RTPSink::setupForSRTP	(	Boolean	useEncryption,
		u_int32_t	roc )

setupForSRTP() [2/3]

u_int8_t * RTPSink::setupForSRTP	(	Boolean	useEncryption,
		u_int32_t	roc,
		unsigned &	resultMIKEYStateMessageSize )

setupForSRTP() [3/3]

void RTPSink::setupForSRTP	(	u_int8_t const *	MIKEYStateMessage,
		unsigned	MIKEYStateMessageSize,
		u_int32_t	roc )

source()

FramedSource * MediaSink::source ( ) const

inlineinherited

Definition at line 42 of file MediaSink.hh.

{return fSource;}

References fSource.

Referenced by AMRAudioFileSink::sourceIsCompatibleWithUs(), AMRAudioRTPSink::sourceIsCompatibleWithUs(), DVVideoRTPSink::sourceIsCompatibleWithUs(), H264VideoRTPSink::sourceIsCompatibleWithUs(), H265VideoRTPSink::sourceIsCompatibleWithUs(), HLSSegmenter::sourceIsCompatibleWithUs(), JPEGVideoRTPSink::sourceIsCompatibleWithUs(), sourceIsCompatibleWithUs(), MPEG1or2VideoRTPSink::sourceIsCompatibleWithUs(), MPEG4ESVideoRTPSink::sourceIsCompatibleWithUs(), and startPlaying().

sourceIsCompatibleWithUs()

virtual Boolean MediaSink::sourceIsCompatibleWithUs ( MediaSource & source )

protectedvirtualinherited

Reimplemented in AMRAudioFileSink, AMRAudioRTPSink, DVVideoRTPSink, H264VideoRTPSink, H265VideoRTPSink, HLSSegmenter, JPEGVideoRTPSink, MPEG1or2VideoRTPSink, and MPEG4ESVideoRTPSink.

References source().

srtpROC()

u_int32_t RTPSink::srtpROC

(

)

const

SSRC()

u_int32_t RTPSink::SSRC ( ) const

inline

Definition at line 100 of file RTPSink.hh.

{ return fSSRC; }

References fSSRC.

startPlaying()

Boolean MediaSink::startPlaying ( MediaSource & source, afterPlayingFunc * afterFunc, void * afterClientData )

inherited

References source().

stopPlaying()

virtual void MediaSink::stopPlaying ( )

virtualinherited

Reimplemented in MultiFramedRTPSink.

transmissionStatsDB()

RTPTransmissionStatsDB & RTPSink::transmissionStatsDB ( ) const

inline

Definition at line 72 of file RTPSink.hh.

                                                      {
    return *fTransmissionStatsDB;
  }

References fTransmissionStatsDB.

Friends And Related Symbol Documentation

RTCPInstance

friend class RTCPInstance

friend

Definition at line 117 of file RTPSink.hh.

References RTCPInstance.

Referenced by RTCPInstance.

RTPTransmissionStats

friend class RTPTransmissionStats

friend

Definition at line 118 of file RTPSink.hh.

References RTPTransmissionStats.

Referenced by RTPTransmissionStats.

Field Documentation

fAfterClientData

void* MediaSink::fAfterClientData

privateinherited

Definition at line 67 of file MediaSink.hh.

fAfterFunc

afterPlayingFunc* MediaSink::fAfterFunc

privateinherited

Definition at line 66 of file MediaSink.hh.

fCreationTime

struct timeval RTPSink::fCreationTime

private

Definition at line 146 of file RTPSink.hh.

Referenced by creationTime().

fCrypto

SRTPCryptographicContext* RTPSink::fCrypto

protected

Definition at line 133 of file RTPSink.hh.

Referenced by getCrypto().

fCurrentTimestamp

u_int32_t RTPSink::fCurrentTimestamp

protected

Definition at line 128 of file RTPSink.hh.

fEnableRTCPReports

Boolean RTPSink::fEnableRTCPReports

private

Definition at line 143 of file RTPSink.hh.

Referenced by enableRTCPReports().

fEnviron

UsageEnvironment& Medium::fEnviron

privateinherited

Definition at line 82 of file Media.hh.

Referenced by envir().

fEstimatedBitrate

unsigned RTPSink::fEstimatedBitrate

private

Definition at line 147 of file RTPSink.hh.

Referenced by estimatedBitrate().

fMediumName

char Medium::fMediumName[mediumNameMaxLen]

privateinherited

Definition at line 83 of file Media.hh.

Referenced by name().

fMIKEYState

MIKEYState* RTPSink::fMIKEYState

protected

Definition at line 132 of file RTPSink.hh.

fMostRecentPresentationTime

struct timeval fTotalOctetCountStartTime fInitialPresentationTime RTPSink::fMostRecentPresentationTime

protected

Definition at line 127 of file RTPSink.hh.

Referenced by mostRecentPresentationTime().

fNextTask

TaskToken Medium::fNextTask

privateinherited

Definition at line 84 of file Media.hh.

Referenced by nextTask().

fNextTimestampHasBeenPreset

Boolean RTPSink::fNextTimestampHasBeenPreset

private

Definition at line 142 of file RTPSink.hh.

Referenced by nextTimestampHasBeenPreset().

fNumChannels

unsigned RTPSink::fNumChannels

private

Definition at line 145 of file RTPSink.hh.

Referenced by numChannels().

fOctetCount

unsigned RTPSink::fOctetCount

protected

Definition at line 126 of file RTPSink.hh.

Referenced by octetCount().

fPacketCount

unsigned RTPSink::fPacketCount

protected

Definition at line 126 of file RTPSink.hh.

Referenced by packetCount().

fRTPInterface

RTPInterface RTPSink::fRTPInterface

protected

Definition at line 124 of file RTPSink.hh.

Referenced by addStreamSocket(), groupsockBeingUsed(), groupsockBeingUsed(), removeStreamSocket(), and setStreamSocket().

fRTPPayloadFormatName

char const* RTPSink::fRTPPayloadFormatName

private

Definition at line 144 of file RTPSink.hh.

Referenced by rtpPayloadFormatName().

fRTPPayloadType

unsigned char RTPSink::fRTPPayloadType

protected

Definition at line 125 of file RTPSink.hh.

Referenced by rtpPayloadType().

fSeqNo

u_int16_t RTPSink::fSeqNo

protected

Definition at line 129 of file RTPSink.hh.

Referenced by currentSeqNo().

fSource

FramedSource* MediaSink::fSource

protectedinherited

Definition at line 58 of file MediaSink.hh.

Referenced by source().

fSSRC

u_int32_t RTPSink::fSSRC

private

Definition at line 140 of file RTPSink.hh.

Referenced by SSRC().

fTimestampBase

u_int32_t RTPSink::fTimestampBase

private

Definition at line 140 of file RTPSink.hh.

fTimestampFrequency

unsigned RTPSink::fTimestampFrequency

private

Definition at line 141 of file RTPSink.hh.

Referenced by rtpTimestampFrequency(), and setRTPTimestampFrequency().

fTotalOctetCount

unsigned RTPSink::fTotalOctetCount

protected

Definition at line 126 of file RTPSink.hh.

fTransmissionStatsDB

RTPTransmissionStatsDB* RTPSink::fTransmissionStatsDB

private

Definition at line 149 of file RTPSink.hh.

Referenced by transmissionStatsDB().

---

The documentation for this class was generated from the following file:

• liveMedia/include/RTPSink.hh
